Hirose's IX Series I/O Connector, Now at Mouser, Supports 10 Gbps Cat6A for Industry 4.0

Mouser Electronics, Inc., the authorized global distributor with the newest semiconductors and electronic components, is now stocking the IX Series I/O connector from Hirose Electric Company. The small, robust design with high-speed data transmission enables advancements in factory automation, data centers, security systems, programmable logic controllers, and transportation applications.

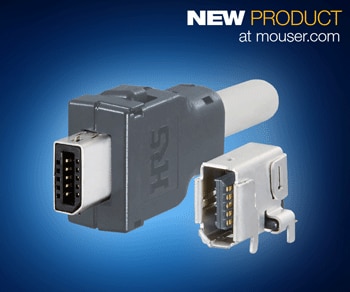

Hirose's IEC PAS 61076-3-124-compliant IX Series I/O connector, available from Mouser Electronics, consists of a plug and receptacle that support CAT5e and CAT6a cabling. With continuous, 360-degree shielding against electromagnetic interference (EMI) and electrostatic discharge (ESD), the IX Series provides secure high-speed transmission rates up to 10 Gbps.

The snap-in I/O connector has a positive metal lock with a preload spring mechanism that provides a clear tactile click and ensures complete, secure mating. The preloaded springs are designed to prevent unintended cable removal and to extend the operating life to more than 5,000 mating/unmating cycles. The connector requires just one fourth of the installation area of RJ45 solutions, and saves space up to 28 percent compared to similar snap-in I/O connectors.

The narrow width of the receptacle is particularly beneficial when multiple connectors are positioned side-by-side on a single PCB. The receptacle shell is mounted on the PCB via through-hole solder legs to enhance PCB retention and to resist the wrenching of the cable assembly, helping to protect the SMT leads. The single plug shell integrates a wire-termination unit and cable clamp, which prevents the connecting part of the cable assembly from being affected by the load on the cable.

The IX Series I/O connector has a rated current of 0.5A (all pins), 1A (any two pins), and 2A (pin No. 1 and No. 8 only), an operating temperature range of minus 40 to 80 degrees Celsius, and a rated voltage of 30V AC.

With its broad product line and unsurpassed customer service, Mouser strives to empower innovation among design engineers and buyers by delivering advanced technologies. Mouser stocks the world's widest selection of the latest semiconductors and electronic components for the newest design projects. Mouser Electronics' website is continually updated and offers advanced search methods to help customers quickly locate inventory. Mouser.com also houses data sheets, supplier-specific reference designs, application notes, technical design information, and engineering tools.

About Mouser

Mouser Electronics, a Berkshire Hathaway company, is an award-winning, authorized semiconductor and electronic component distributor focused on rapid New Product Introductions from its manufacturing partners for electronic design engineers and buyers. The global distributor's website, Mouser.com, is available in multiple languages and currencies and features more than 4 million products from over 700 manufacturers. Mouser offers 22 support locations around the world to provide best-in-class customer service and ships globally to over 550,000 customers in 170 countries from its 750,000 sq. ft. state-of-the-art facility south of Dallas, Texas.

About Hirose Electric

Hirose Electric Company specializes in the manufacture of connectors and has been a contributor to the development of the electronics sector for over 70 years. Their modest and humble business philosophy of seeking wisdom from all sources and incorporating that knowledge to maintain high quality and efficiency has earned Hirose a loyal customer base. Hirose is also committed to environmental issues in the manufacture of connectors such as coaxial connectors, FFC / FPC connectors, and single and double row connectors.

For more information, please visit: https://www.mouser.co.uk
